Centrifuge KW7000
Additional Information
30 X 70 inch bowl (with backdrive)
200hp bowl drive and 60 hp backdrive high efficiency electric motors
Vibration and torque limit switch for a safer operation.
4 inch Gorman Rupp pump
4 inch I.D. feed tube
Variable speed pump flows up to 2.5 m³
75% efficient, 6 impeller pump
Replaceable mechanical seals
Very low wear factor
All hoses are ANTI-STATIC and oil resistant

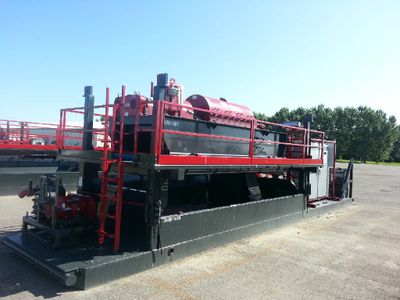

Whirlybyrds units have a stand / shale tank with both cable-lift system and hydraulic lift systems.
The skids have all equipment attached to it: VFD drive panel, pump, centrifuge and mat. Equipped with folding stairways, an emergency escape ladder and 2 LED safety lights.
This load can be loaded and spotted with a tri-axle low-boy winch tractor. (NO PICKER IS REQUIRED).
Equipped with:
Full amperage exhane Polyrad marine offshore power cords.
Vibration and torque limit switch for a safer operation.
Unique drive system:
The backdrive motor acts as a generator and generates power back to the DC bus, a result of resistance to flow from the fluid being moved through the centrifuge and the common solids being augered out. The power is then being used by the entire system.
The combination of our high efficiency motors, exhane Polyrad power cords and backdrive regeneration system reduce (total) amperage draw from the electrical source. This gives our system added economic and mechanical efficiency.
